Personal Airspaces

Learn how to create and add your own airspaces

Airspaces

Personal Airspaces

Explore > Airspaces > Personal > Upload Airspace

In addition to official airspaces, you can upload your own OpenAir files as personal airspaces. This is useful for local no-fly areas or custom planning zones.

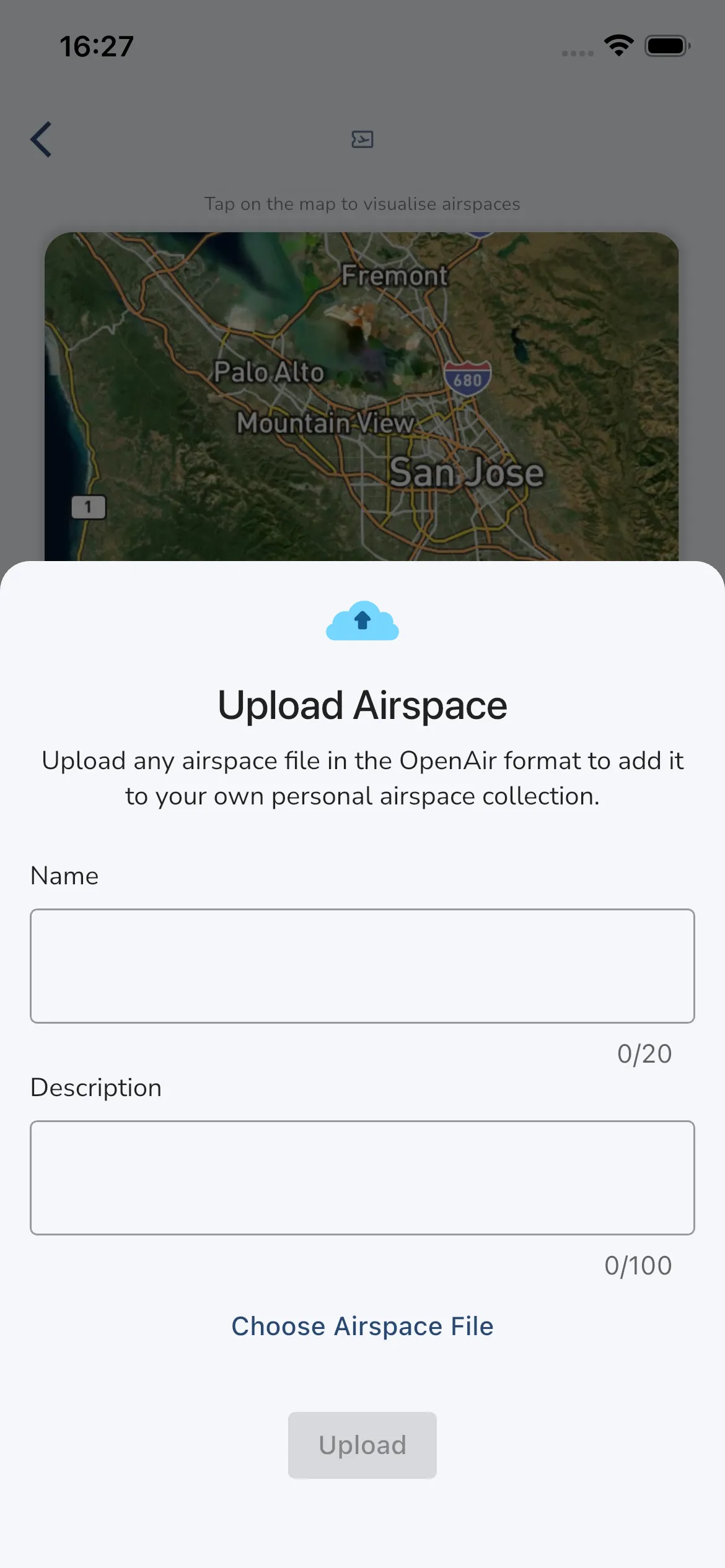

Personal Airspaces 1

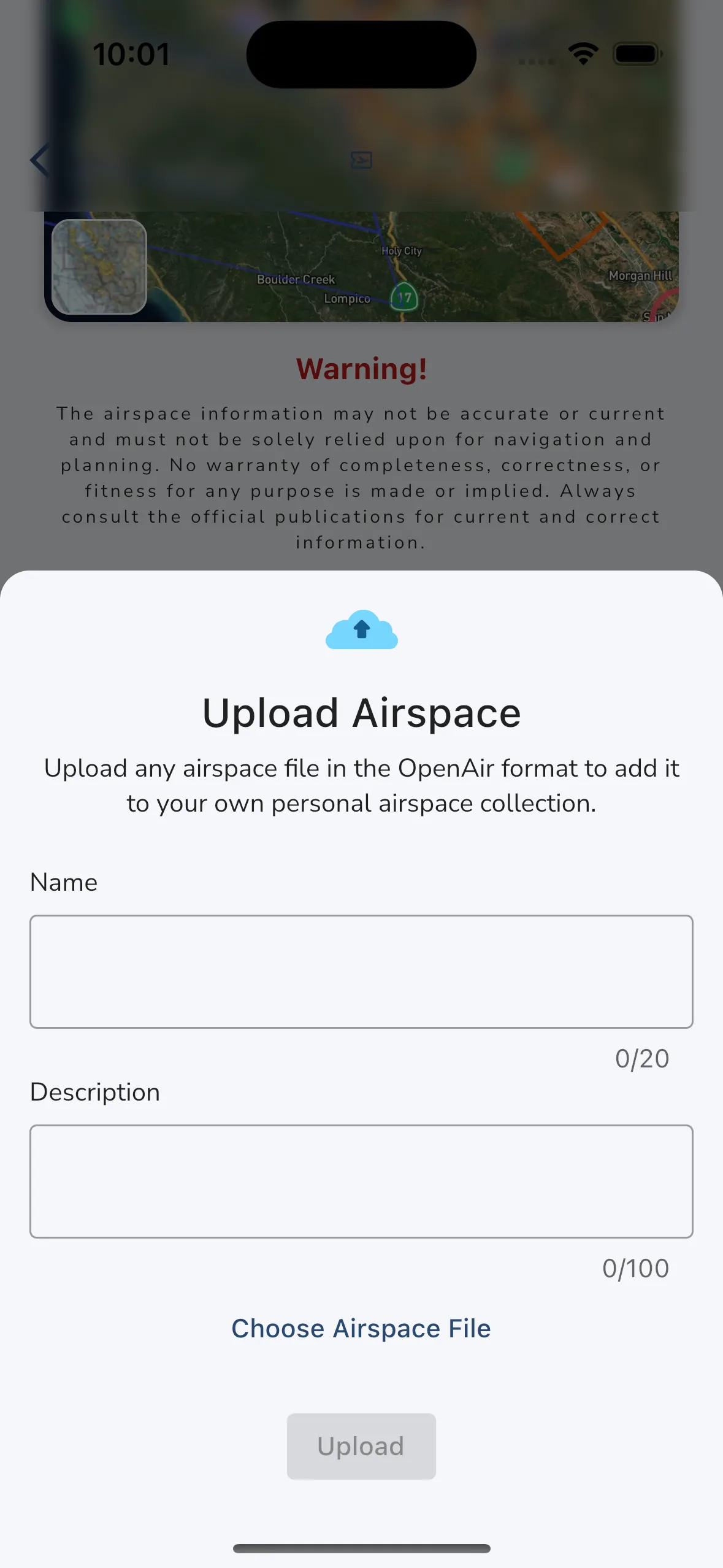

To upload a personal airspace:

  1. Open Explore > Airspaces.
  2. In the Personal Airspaces section, tap Upload Airspace.
  3. Enter a Name and Description.
  4. Tap Choose Airspace File and select your OpenAir file.
  5. Tap Upload.

After upload, the airspace appears in your personal list and can be configured like any installed airspace.

OpenAir format: Gaggle imports plain text files in OpenAir format. For a full reference, see the OpenAir format documentation. You can also use tools such as XC Guide to build or validate files.

A minimal example with a polygon and a circle, end each airspace with a *

AC A
AY P
AN My Polygon Airspace
AL GND
AH 7000ft AGL
DP 01:30:19N 001:04:36E
DP 01:37:23N 001:12:26E
DP 01:37:23N 001:12:26E
DP 01:52:57N 001:28:59E
DP 01:51:05N 001:35:01E
DP 01:46:58N 001:32:52E
DP 01:33:18N 001:17:33E
DP 01:24:27N 001:07:46E
DP 01:30:19N 001:04:36E
*

AC C
AY RMZ
AN My Circle Airspace
AL 1000ft AMSL
AH 2000ft AMSL
V X=50:35:36N 007:56:42E
DC 0.3
*

You can download an example file here: Download Example OpenAIR File
